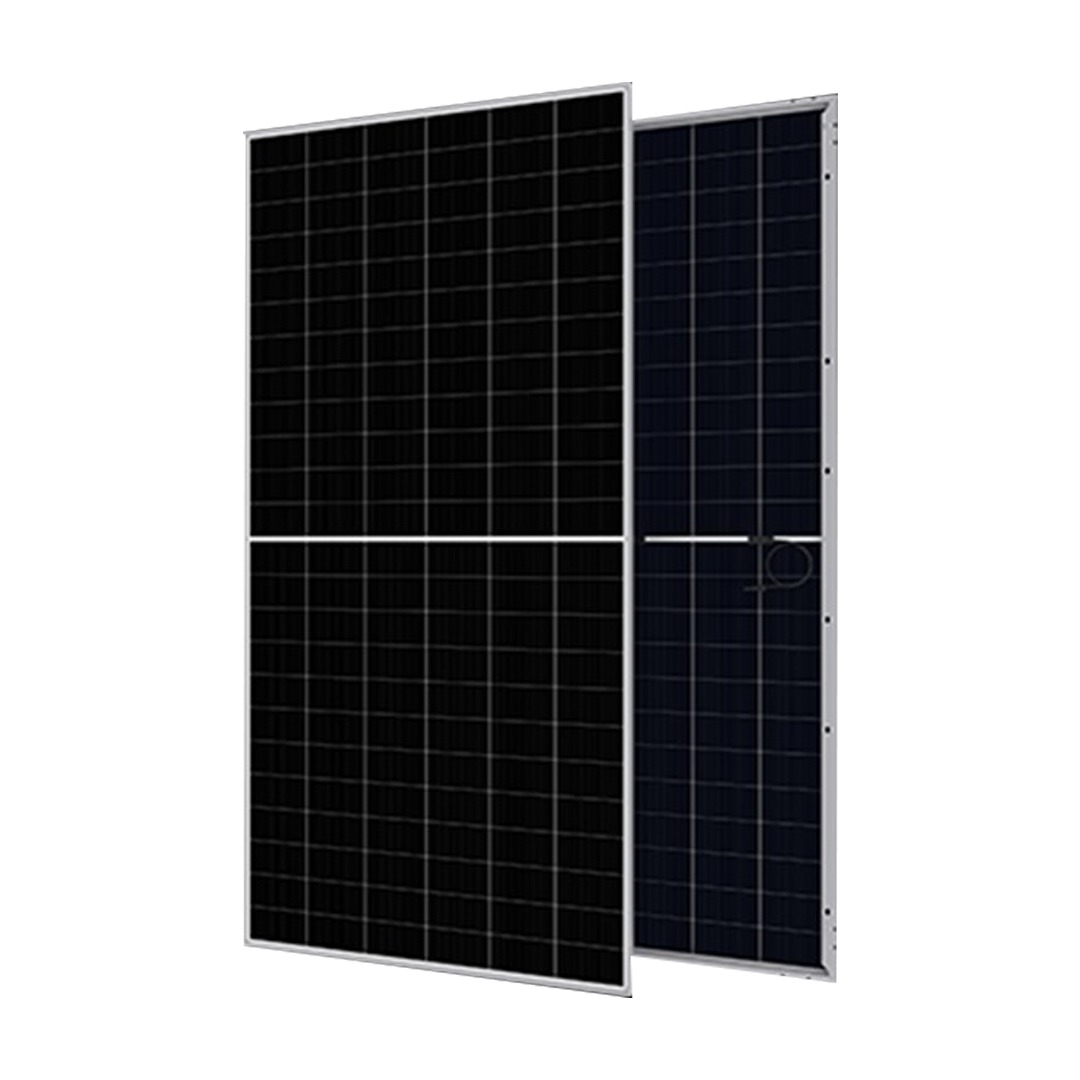

BISTAR TP6L72MH 455W – Monocrystalline PERC Solar Panel | Half-Cell | 9BB | 20.9% Efficiency

Brands:
SKU: TP6L72M455 Category:

128,15   incl. VAT  /  0.00 BGN

Availability: Contact us

Technical characteristics:

Cell Type: Single-Crystal PERC (Half-Cell)
Configuration: 144 half-cut cells (6×24)
Technology: 9BB (9 Busbar)
Maximum power (Pmax): 455 W
Modular efficiency: 20.9%
Operating Voltage (Vmp): ~41.1 V
Operating current (Imp): ~11.08 A
Open circuit voltage (Voc): ~49.8 V
Short-circuit current (Isc): ~11.61 A
Dimensions: 2094 × 1038 × 35 mm
Weight: ~23.5 kg
Max. System Voltage: 1500 V DC
Max. Fuse current: 20–25 A
Connectors: MC4 compatible
Cables: 4 mm², length 300 mm
Degree of protection of the box (J-Box): IP68

Out of stock

SKU: TP6L72M455 Category:
  • Description
  • Additional information

Description

Product Description:

BISTAR TP6L72MH 455W is a high-quality monocrystalline solar panel of the TP6L72MH series with PERC half-cell technology and 9 Busbar (9BB) configuration. Designed for residential, commercial and industrial installations, it offers high efficiency, excellent reliability and stable operation even in challenging conditions.

Temperature characteristics:

  • Pmax Temperature Coefficient: -0.36% / °C

  • Operating temperature: -40°C to +85°C

  • NOCT: ~45 ± 2°C

Key advantages:

Half-cell + 9BB technology – lower losses, better shading efficiency
Anti-LID and anti-PID protection – reduced degradation over time
PERC cells – increased light capture from the back side
Mechanical resistance up to 5400 Pa (snow) and 2400 Pa (wind)
Compatible with network and offgrid systems
Certified according to international standards – IEC/CE/TÜV

Guarantee:

  • 12 years product warranty

  • 25 Years Linear Performance Warranty
    ➤ Residual power ≥ 84.8% on the 25th year

BISTAR TP6L72MH 455W is an excellent choice for photovoltaic systems that require high efficiency, reliability, and long-term sustainability, without compromising on quality.

We inform you that despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Additional information

Weight 27 kg
Frame color

Gray frame

Warranty

12

Cell performance guarantee

View cell

Single-sided / Double-sided

one-faced

Power W
