HUAWEI SMART PV OPTIMIZER 450W
Description:

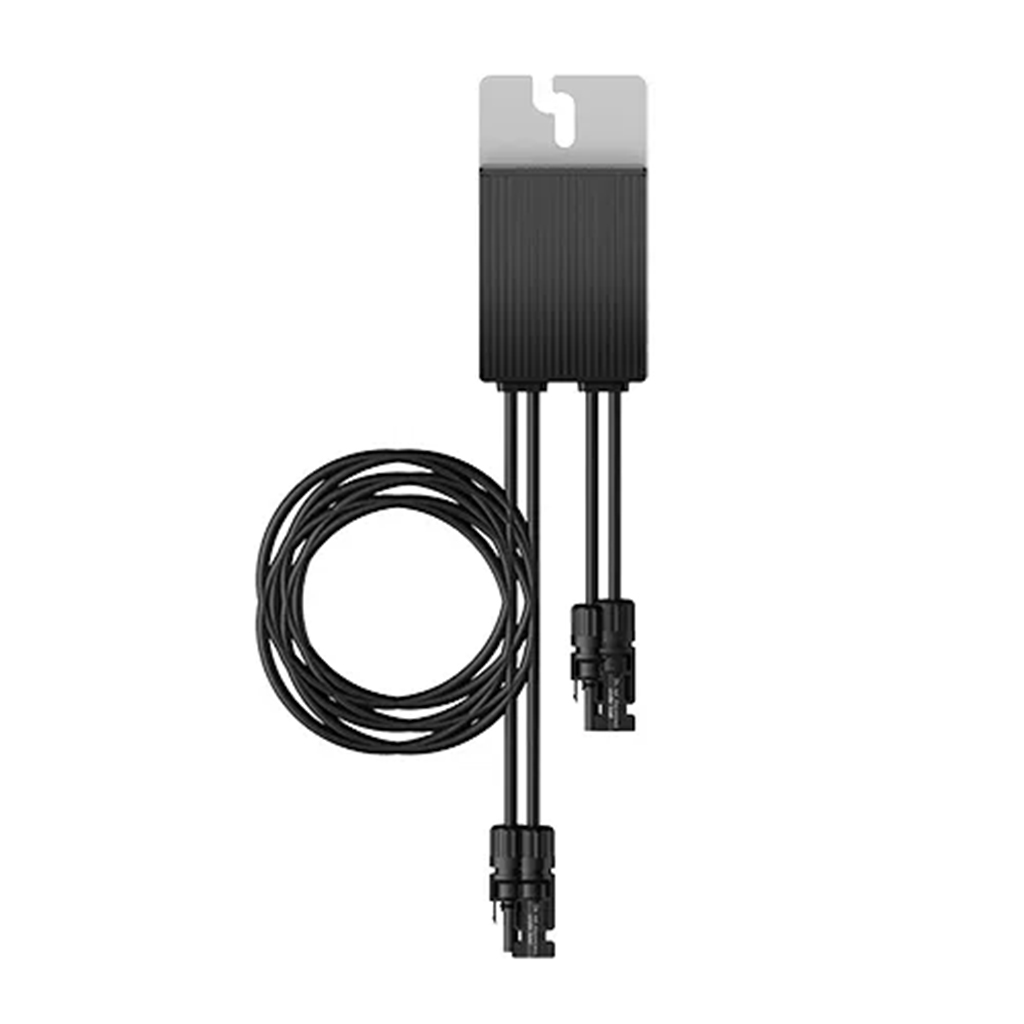

The HUAWEI SMART PV OPTIMIZER 450W optimizer is a high-performance device designed to optimize the performance of solar panels. It provides individual monitoring and control of each panel, greatly improving the efficiency of the solar system and reducing the loss of partial shading or differences in the panels.
Features:
-Maximum power: 450W, making it suitable for a wide range of solar panels.
-Maximum input voltage: 80V.
-High efficiency: Up to 99.5% tracking efficiency.
-Operating voltage range: 8V – 80V.
-Operating temperature range: -40°C to +85°C.
-Communication: Supports monitoring and control via PLC (Power Line Communication).
-Security: Built-in protections against overvoltage, overheating and other anomalies.
-Protection degree: IP68, which guarantees long-lasting and reliable operation even under adverse conditions.
Application:
The HUAWEI SMART PV OPTIMIZER 450W optimizer is ideal for solar systems where there is partial shading or panel differences. It is suitable for home, commercial, and industrial installations where it is important to maximize system performance and efficiency.
This optimizer provides individual monitoring of each panel, allowing for better management and maintenance of the solar system. It also reduces partial shading losses and improves the overall efficiency of the installation.
Technical Specifications – DATASHEET – SUN2000 Smart PV Optimizer User Manual
SUN2000-450W-P
Installation Guide – SUN2000 Smart PV Optimizer User Manual
