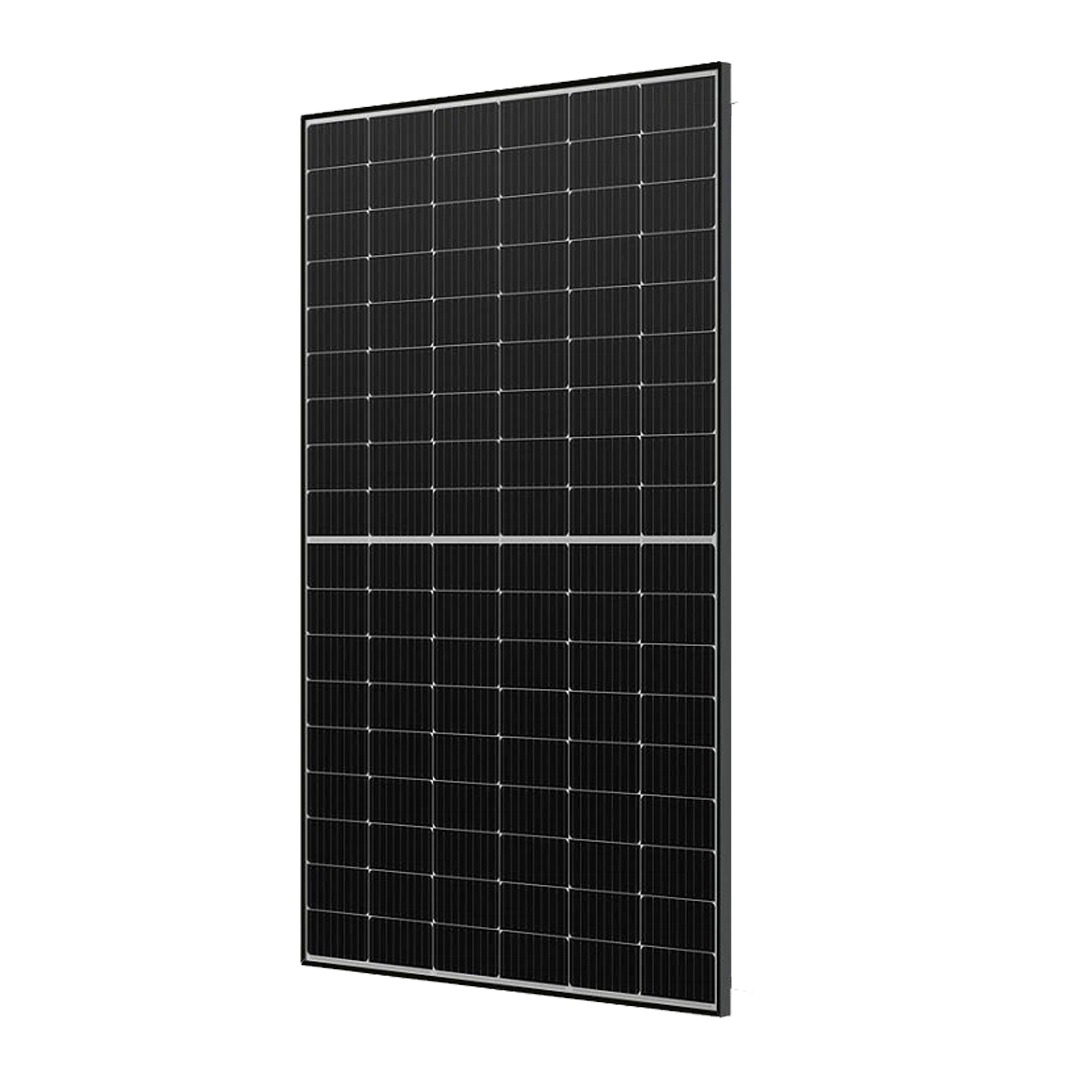

SHINEFAR SF-M18/108 440W | Monocrystalline Bifacial Solar Panel | Black Frame | 30 years warranty
118,75 € incl. VAT / 0.00 BGN
Availability: Contact us
Technical characteristics:
✅ Power (STC): 440 W
✅ Cell type: Single-crystal PERCs, 108 cells (2×54 half-cell)
✅ Module efficiency: ≥ 22.53%
✅ Dimensions: 1722 × 1134 × 30 mm
✅ Weight: ~21.0 kg
✅ Glass: Tempered glass 3.2 mm, anti-reflective coating
✅ Frame: Aluminum, Black, Corrosion Resistance
✅ Cable: 1.4 m, 4 mm², UV-resistant, TUV
✅ Connectors: MC4-compatible
✅ Operating voltage (Vmp): ~33.5 V
✅ Operating current (Imp): ~13.13 A
✅ Open circuit voltage (Voc): ~40.6 V
✅ Short Circuit Current (Isc): ~13.97 A
✅ Max. System Voltage: 1500 V DC
✅ Temperature Power Factor (Pmax): -0.34%/°C
✅ Operating temperature: -40°C to +85°C
✅ Max. Mechanical load: 5400 Pa (snow), 2400 Pa (wind)
✅ Bifacial coefficient: additional yield on the back side
✅ Maximum fuse current: 25 A
Out of stock
-
Description
-
Additional information
Description
SHINEFAR SF-M18/108 440W is a high-efficiency monocrystalline bifacial solar panel using N-Type TOPCon Half-Cell technology. With a sturdy black aluminum frame, a 1.4 m long cable and improved light absorption on both sides, this module is ideal for rooftop and ground installations where maximum energy production and aesthetic appearance are sought.
Dimensions and weight:
-
Dimensions: 1722 × 1134 × 30 mm
-
Net weight: ~21.0 kg
-
Connector Type: MC4-compatible
-
Connection box: IP68 protection
Guarantee:
Key advantages:
-
Bifacial technology – generates additional energy from reflection on surfaces such as concrete, white roofs and ground
-
N-Type TOPCon cells – lower degradation and better performance at high temperature
-
Black aluminum frame – an aesthetic look for premium projects and roofing systems
-
High mechanical resistance – 5400 Pa for snow and 2400 Pa for wind
-
High efficiency in low light – production even on cloudy days
Certificates:
Applications:
-
Residential roof systems with high aesthetic requirements
-
Business buildings and commercial projects
-
Ground-based photovoltaic parks with optimisation of production through reflection
-
Industrial and agro-photovoltaic installations
- Number in a pallet – 37 pcs.
SHINEFAR SF-M18/108 440W Black Frame Bifacial is a modern and intelligent solution for maximum energy production, durability and impressive vision of any solar system.
We inform you that despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.
