Description

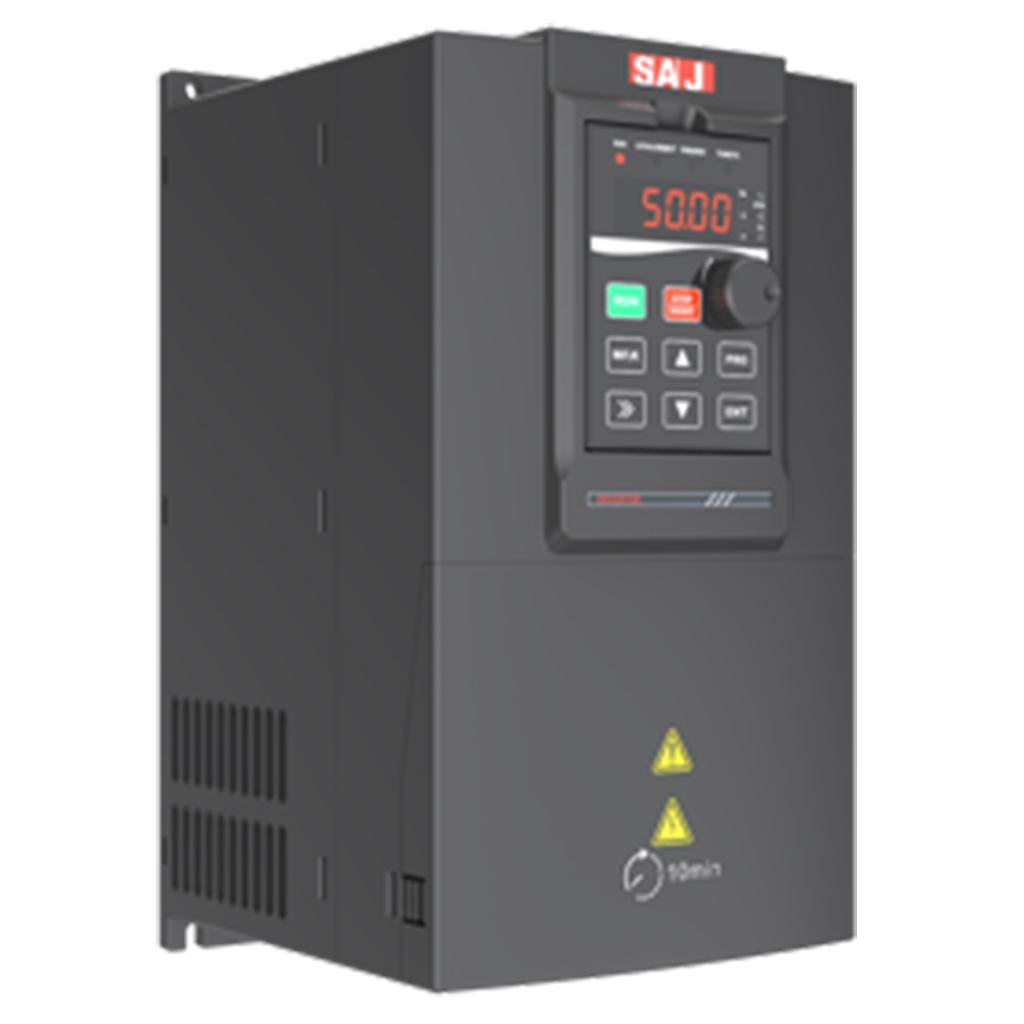

Solar Pump Controller SAJ PDS33-4T7R5B-E
The SAJ PDS33-4T7R5B-E is a solar pump controller designed to control pumps and motors using the energy from solar panels or backup power from an AC generator. This controller is part of the PDS33 series and features high reliability and efficiency when working in various conditions.
Main functions
- Input and output data:
- Maximum input voltage (Voc): 800V DC
- Recommended Voltage (MPP): 500-750V DC
- Recommended PV array power: 9-12 kW
- Alternative AC Generator Input Voltage: 380V AC (±15%)
- Maximum Current (RMS): 20.5A
- Output voltage: 380V AC (±15%)
- Maximum Output Current (RMS): 17A
- Rated output power: 7.5 kW
- Protection and monitoring:
- Built-in protective device against surge protector, short circuit, open circuit and overheating.
- Idle protection and pump lock.
- Monitoring and automatic recovery after abnormal conditions are eliminated.
- Interface and Controls:
- LED display to indicate the status of the system.
- Keyboard for easy setup and configuration.
- Support for MODBUS communication via optional RS-485 card.
- Additional features:
- Soft start function to reduce wear on the pump and motor.
- Water level control with the ability to connect remote water level sensors.
- Ability to switch to backup AC power supply in case of insufficient solar energy.
Application
SAJ PDS33-4T7R5B-E is suitable for use in a variety of agricultural and industrial applications where reliable and efficient management of water supply systems is required. The controller can be used to:
- Solar pump irrigation systems.
- Water supply systems for rural and remote areas.
- Industrial applications where stable operation of pumps and motors under variable energy conditions is required.
This controller offers reliability and long-lasting performance thanks to its advanced security features and automatic fault recovery capabilities.
