Description

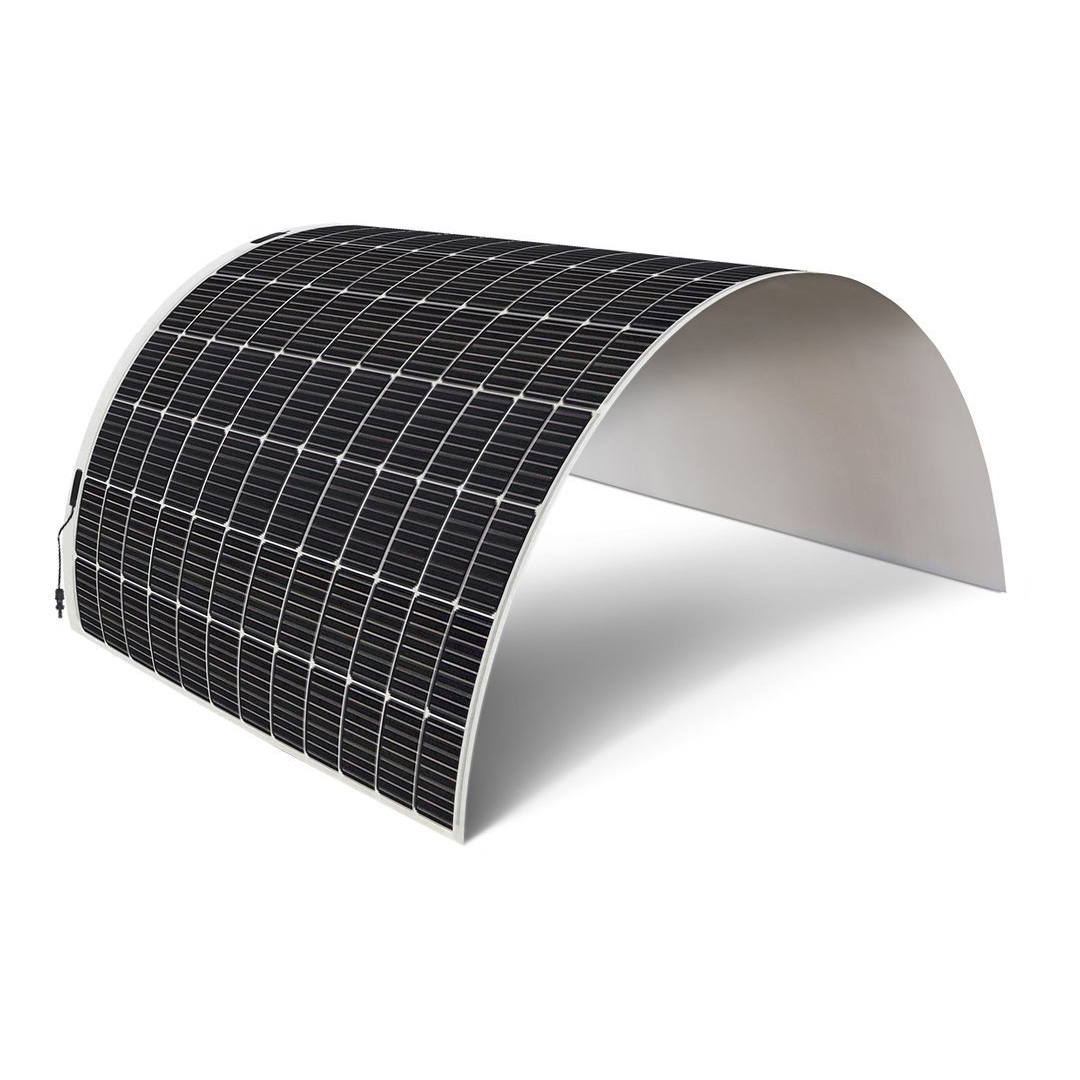

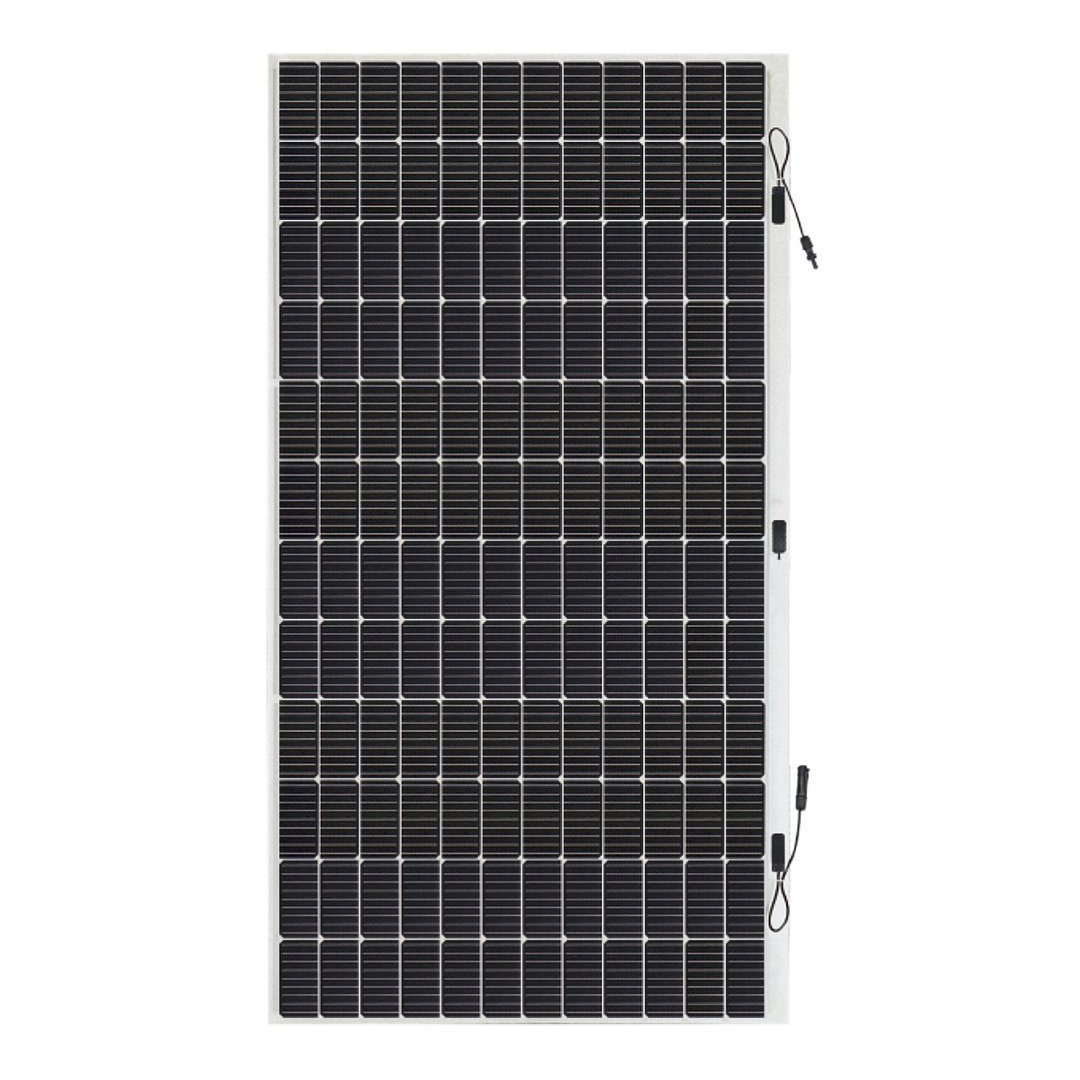

Sunman eArc 430W Flexible Photovoltaic Solar Panels are lightweight, durable, and efficient solar panels, designed for a range of applications, including caravans, campers, yachts, trains, and buses. It is made of a composite material with a patent that is similar to those used in aircraft windows, making it sturdy and sturdy.
Sunman Energy is a technology company founded by a group of industry veterans who have a clear vision for the future of solar energy. Through the research and development of composite materials, Sunman has successfully commercialized the world’s first lightweight and flexible glass-free panel – eArc. By replacing glass entirely, eArc is bringing solar energy to markets and developing scenarios for their application that were previously considered impossible.
The Sunman eArc 430W Flexible Solar Panel is a lightweight, durable, and efficient solar panel designed for a range of applications, including caravans, campers, yachts, trains, and buses. It is made of a composite material with a patent that is similar to those used in aircraft windows, making it sturdy and sturdy. eArc technology uses glass fiber-reinforced composite polymers that reduce the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of failure in flexible and lightweight solar panels. The panel is 2mm thin and weighs 7.3kg, making it easy to install and transport.
The solar panel includes monocrystalline cells that provide a power of 430 watts, with a maximum power voltage of 42 Vmp and a maximum power current of 10.24 Imp. It has an open circuit voltage of 49.8 V and a short-circuit current of 10.74 Isc. The panel has an operating temperature range of -40 °C to 85 °C and a 10-year warranty for the build product and 5 years for mobile applications.
The Sunman eArc 430W Flexible Solar Panel can be installed using two rolls of double-sided adhesive tape with a very high level of bonding and polycarbonate strips, or using structural silicone (Fix8) to bond the panel to a surface. The panel also has a ventilated gap that improves panel efficiency and reduces heating of the mounting surface, allowing the junction box to sit under the panel.
Not
all rooftops can bear the weight of glass PV modules and their structures.
eArc is the best solution for roofs that suffer from structural and load issues. The eArc module is 70% lighter than conventional glass modules, which is designed for commercial and industrial rooftops that do not have the minimum load capacity to support conventional glass modules.
Technical data
- Maximum Power (Pmax): 430
- Maximum supply voltage (Vmp): 42.0
- Maximum Power Current: (Imp): 10.24
- Open circuit voltage (Voc): 49.8
- Short Circuit Current (Isc): 10.74
- Module efficiency (%): 19.2
- Operating temperature: -40 to 85 C
- Maximum system voltage: 1000 V DC (IEC)
- Maximum rated current per series fuse: 20 A
- Application Class: Class A
- Power tolerance: 0/+5 W

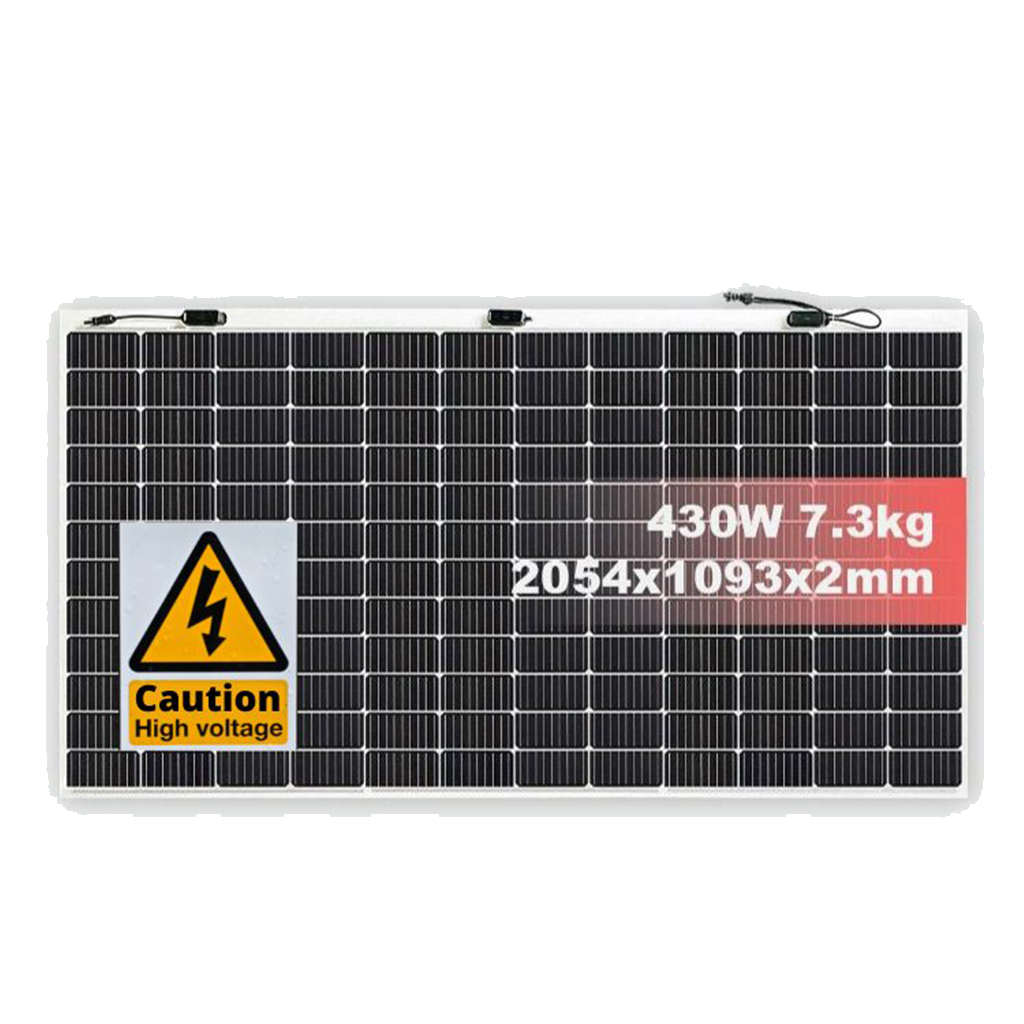

- Weight: 7.3 kg
- Size: 2054x1093x2 mm
- 10 years product warranty
