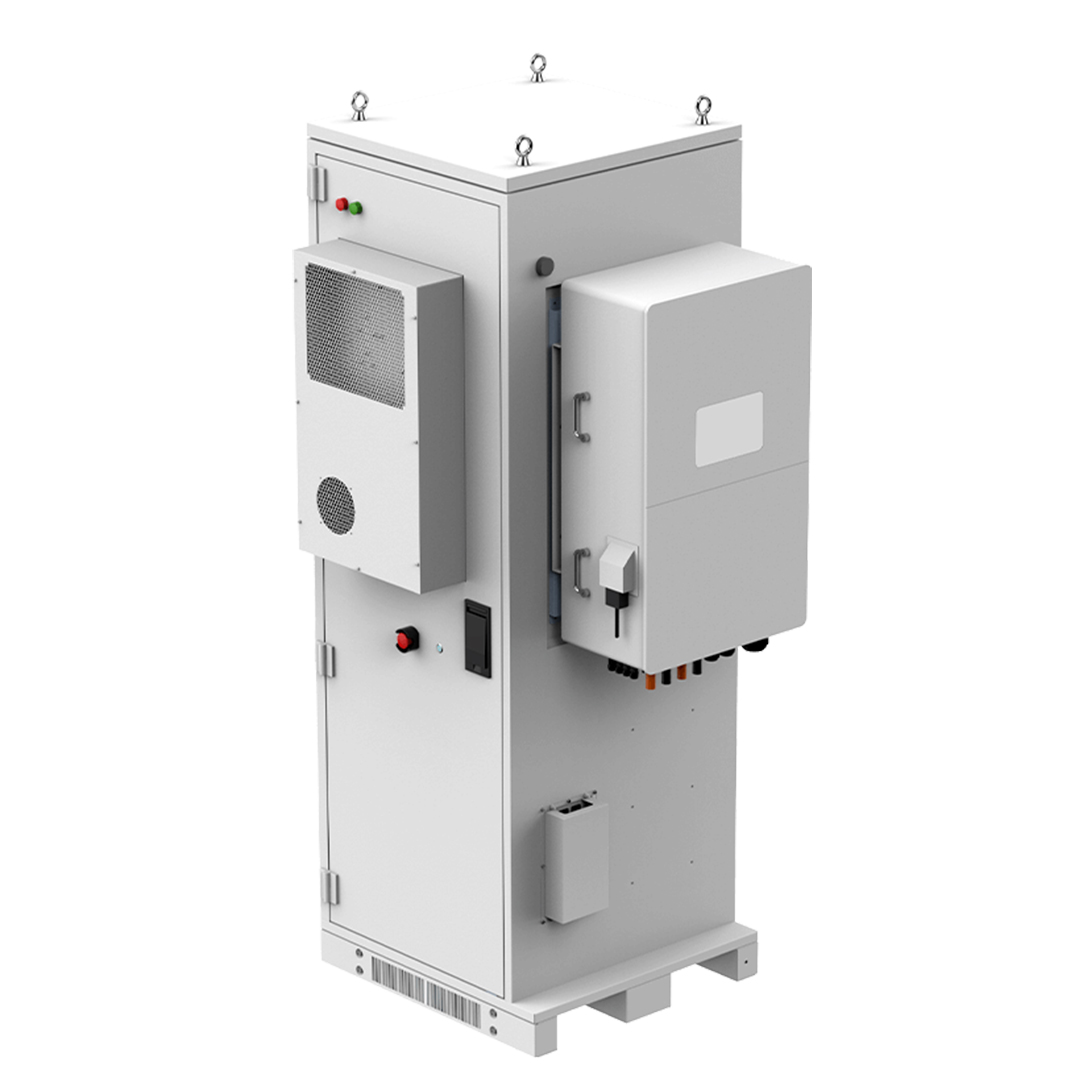

Sunwoda C&I ESS Energy Storage System – 60 kWh
Ideal for commercial and industrial needs
The Sunwoda C&I ESS system offers a high-tech solution for energy storage and management. With an innovative modular design and flexible configurations, it is suitable for a variety of applications, including managing peak loads, storing excess energy, and providing backup power.
Main characteristics:
Modular and Scalable System: Expandable on both DC and AC sides to meet growing needs.
High Efficiency and Reliability: Supports multiple operating modes, including Solo Use, Peak Shift, Force Charging, and Discharging.
Security and stability: Integrates multiple layers of protection and monitoring.
Simple installation: Easy to deploy with optimal use of space.
Technical data:
Battery:
Number of battery modules: 12
Rated voltage: 614.4 V
Voltage range: 537.5–691.2 V
Storage capacity: 60 kWh
Life cycles: ≥ 6000
PV (photovoltaic) parameters:
Maximum PV input power: 39–65 kW
Rated input voltage: 600 VDC
Maximum input voltage: 1000 VDC
MPPT voltage range: 200–850 VDC
PV input current: up to 36A per MPPT
AC parameters:
Rated input/output power: 30 kVA
Maximum input/output power: 50 kVA
Voltage: 230/400V, 50/60Hz
THDi: ≤3%
Power factor: 0.8 leading to 0.8 lagging
System parameters:
Dimensions (WD): 1200 x 2160 x 750 mm
Weight: 860–880 kg
Communication: CAN, RS485, Wi-Fi, Ethernet
Protection degree: IP55
Cooling: Air cooling
Temperature range: -30°C to +50°C
Warranty: 5 years
Advantages:
Support for parallel operation with a capacity of up to 150 kW / 180 kWh
High resistance to temperature fluctuations and humidity
Certificates: UN38.3, CE, IEC62619, VDE-AR-N 4105, IEC 62109
Applications:
Energy Independent Retail Outlets
Energy Cost
Optimization Integration with Renewable Energy Sources
Backup Power for Critical Applications
Contact us to learn how Sunwoda C&I ESS can improve the energy efficiency and sustainability of your business!
